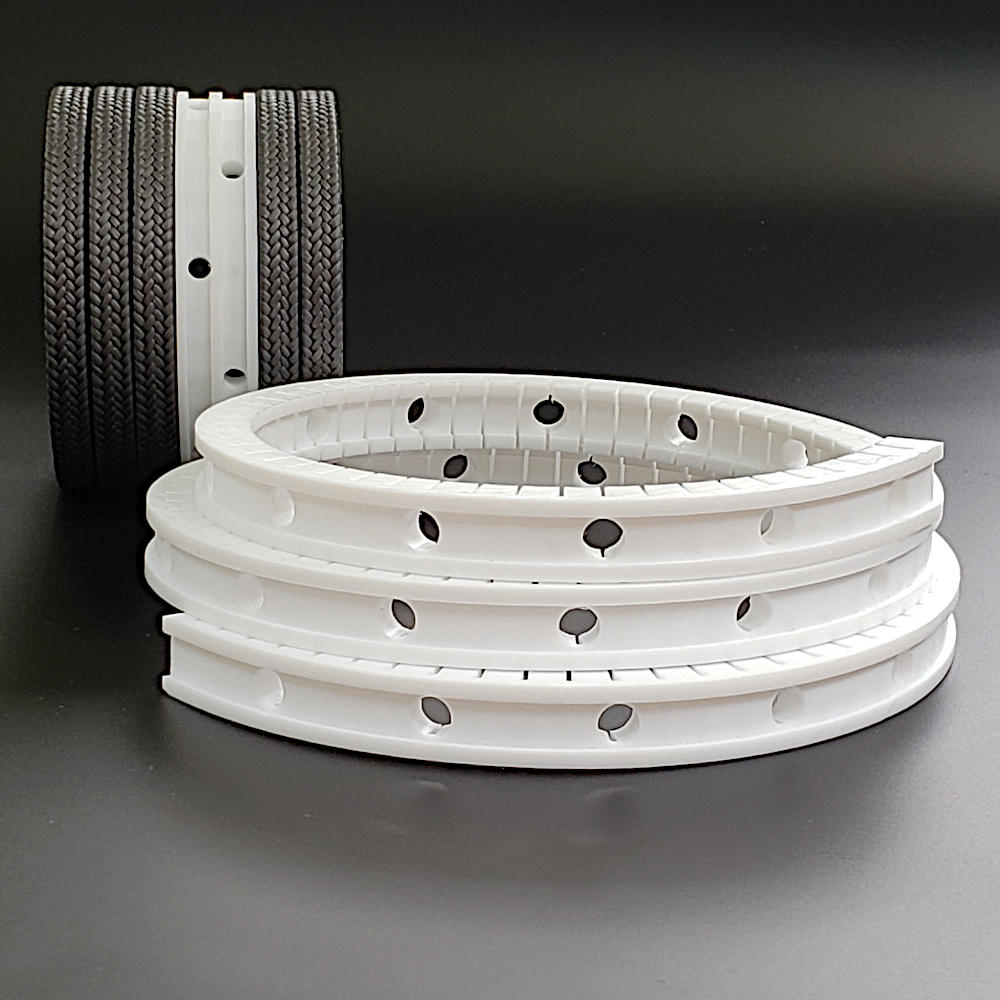

PTFE lantern rings are widely used in applications where outside lubrication is necessary in order to keep packing lubricated, cool, and flushed of abrasives and chemicals. The use of lantern rings greatly increases the life of compression packing, reducing maintenance and downtime over the life of the equipment.
PTFE lantern ring material will handle a wide range of fluids, offering maximum corrosion resistance and, unlike metallic rings, will not gall or score shafts or sleeves. They have also been successfully used in bearing assemblies as a conduit for grease or oil. The lantern ring works in aiding movement of the lubricant without risk of contamination or excess stuffing box wear.
Stock Sizes of Lantern Ring Material
| Standard Width (size x width x length) |
Extra Wide (size x width x length) |
|---|---|
| 1/4” x 3/8” x 48” | 1/4” x 1/2” x 48” |
| 5/16” x 7/16” x 48” | 5/16” x 5/8” x 48” |
| 3/8” x 1/2” x 48” | 3/8” x 3/4” x 48” |
| 7/16” x 9/16” x 48” | 7/16” x 7/8” x 48” |
| 1/2” x 5/8” x 48” | 1/2” x 1” x 48” |
| 9/16” x 11/16” x 48” | 9/16” x 1” x 48” |
| 5/8” x 3/4” x 48” | 5/8” x 1” x 48” |
| 3/4” x 7/8” x 48” | 3/4” x 1” x 48” |
| 7/8” x 1” x 48” | |
| 1” x 1” x 48” |
Custom PTFE universal lantern ring dimensions available by request
How to select: Choose the same "size" as the equipment requires for packing cross section. Choose the width which best matches the original lantern ring. Create other widths by combining PTFE flexible lantern ring material.
Performance Capabilities of PTFE Lantern Ring Material
- Temperature: –240 ̊C to 260 ̊C/–400 ̊F to 500 ̊F
- Pressure: Pump 68 bar/1000 psi
- Speed: Not Applicable
- pH Range: 0 to 14
- Material: 100% virgin PTFE
Key Benefits of PTFE Universal Lantern Rings
- Reduces inventory: One roll can be cut to length to fit any shaft size.
- Replaces metal and plastic lantern rings: PTFE is suitable for a wide range of pH, temperatures, and applications.
- Speeds pump repacking: Easily cut on the job site with a knife or saw. Pliable enough to be easily removed with common packing tools.
Universal Lantern Ring Resources
-
Flexfit Plastics ULR Brochure.pdf (145.63 KB)
Made in the USA
Flexfit Plastics, LLC is a manufacturer of PTFE flexible lantern ring material. We take pride in our commitment to provide the highest quality products at the most exceptional value. We are seeking distributors who share our commitment to excellence. By joining our team of distributors, you will have access to a unique product line that delivers exceptional value to customers worldwide. Our outstanding customer service and competitive pricing will enable you to offer your customers the best possible value, regardless of location. If you are interested in becoming a distributor of our PTFE Universal Lantern Ring strips, we invite you to contact us today to explore how we can work together to grow your business and reach new markets worldwide.
We offer great distributor pricing and fast worldwide shipping from stock manufactured in Charlotte, North Carolina.
